Fixing SPF Alignment (DMARC): Full Guide

Why SPF alignment breaks (common causes)

• Third-party senders use their own bounce domain. Your visible From: is @example.com, but the Return-Path is @senderservice.com.
• Shared infrastructure or reseller brands. The provider routes bounces via a shared vendor domain.
• You’re on aspf=s (strict). Subdomains that used to align under relaxed alignment now fail.
• SPF policy issues. Missing include: for the sender, exceeding the 10-lookup limit, or a permerror/temperror causing SPF to fail before alignment is even checked.
• Forwarding and lists. Forwarders modify the path: SPF often breaks in transit. DKIM alignment becomes the safety net for these hops.

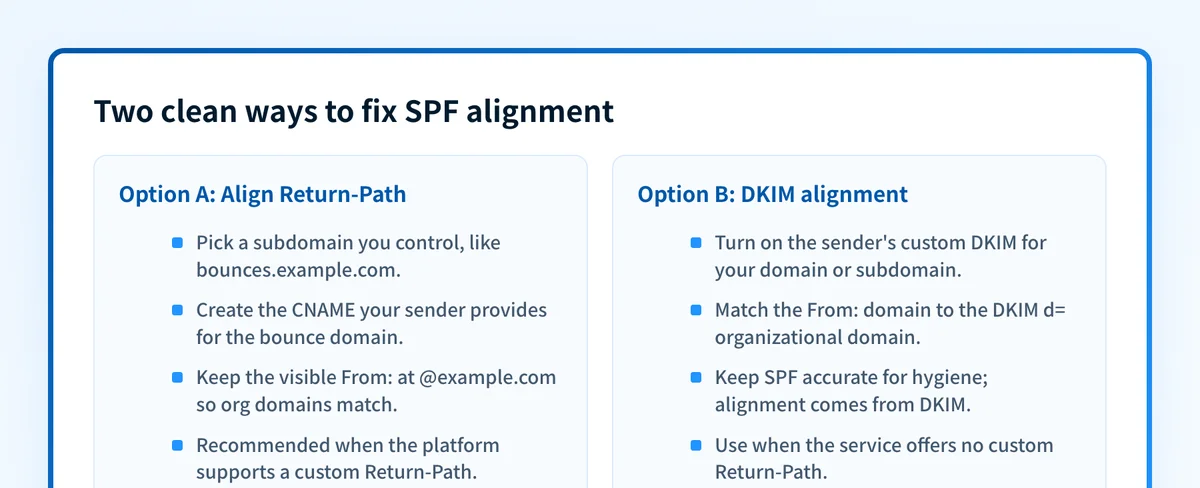

The two clean ways to fix SPF alignment

Option A: Align the Return-Path to your domain (recommended when supported)

If the platform supports it, do both. DMARC passes when either path is aligned.

Most platforms let you set a custom bounce/return-path domain (a.k.a. custom MAIL FROM). The pattern is usually:

• Choose a subdomain you control, e.g. bounces.example.com or rp.example.com.
• Create a CNAME the sender gives you (e.g. bounces.example.com → some.vendor.net), then confirm the CNAME resolves.
• Keep your visible From: as @example.com (or a subdomain of it) so organizational domains match under relaxed alignment.

In Palisade DMARC agent

• Go to Sources and open the failing sender.
• Click Fix → Align SPF. The agent will tell you if the provider supports custom Return-Path and generate the exact CNAME/SPF entries for your zone.
• Publish the record using Smart DNS suggestions. The agent monitors for propagation and flips the status to Aligned once mail is observed passing.

Option B: Rely on DKIM alignment when SPF alignment isn’t possible

Some services don’t offer custom Return-Path. That’s fine: DMARC passes if DKIM is aligned. Do this:

• Turn on the sender’s custom DKIM for your domain/subdomain.
• Send using a From: at the same organizational domain as the DKIM d= domain.
• Keep SPF accurate for hygiene, but accept that alignment will come from DKIM.

In Palisade DMARC agent

• Open the source → Fix → Align DKIM to generate/select the provider’s DKIM CNAMEs.
• Publish with Smart DNS and re-test. The agent confirms alignment on live traffic.

Which is better? If supported, do both. Alignment via either path will satisfy DMARC. In practice, use custom Return-Path + custom DKIM for strong deliverability and resilience to forwarding.

Provider-agnostic checklist

• Pick a sending subdomain (e.g., mail.example.com) and standardize on it for all ESPs.
• Return-Path: set a custom bounce domain under that subdomain (bounces.mail.example.com) when the platform allows it.
• DKIM: always enable custom DKIM on your domain (or the same subdomain family).
• SPF record hygiene:

Keep it short: avoid chains of include: that trigger >10 DNS lookups, remove legacy vendors you no longer use, and don’t “flatten” aggressively if your sender rotates infrastructure (prefer vendor-maintained includes).

• DMARC mode: start with relaxed alignment; only move to strict after confirming every path truly matches.

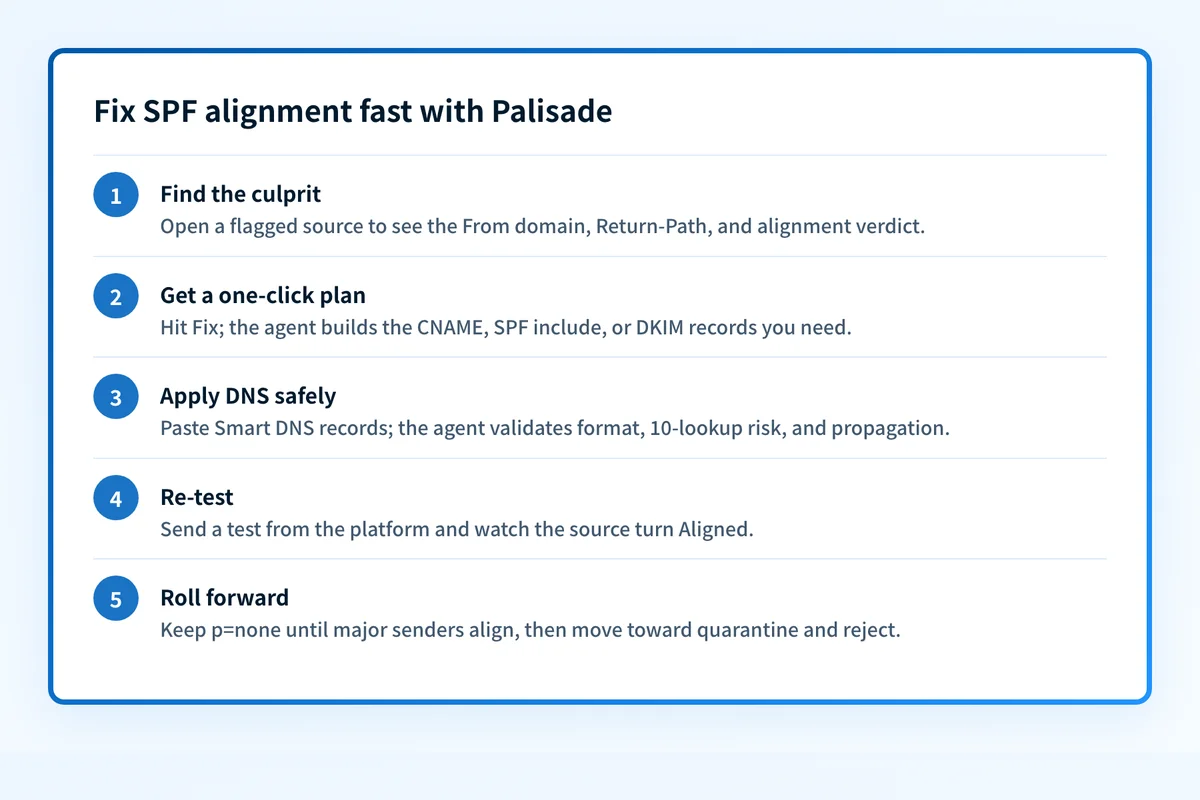

How to fix this fast with Palisade

1) Find the culprit

The agent builds the DNS records and confirms alignment on live traffic.

• The Email Security Score and the Palisade DMARC agent will flag sources with SPF not aligned. Click into a source to see:

the From domain the agent observed, the Return-Path domain that passed or failed SPF, and the alignment verdict (Aligned/Unaligned) per DMARC.

2) Get a one-click plan

• Hit Fix and choose Align SPF (or Align DKIM if SPF alignment isn’t supported by that source).
• The agent auto-builds the correct DNS records:

a CNAME for a custom Return-Path when supported, a minimal SPF include if your current SPF is missing the sender range, or DKIM CNAMEs for the sender’s keys.

3) Apply DNS safely

• Use Smart DNS suggestions to copy/paste records into your DNS host.
• The agent validates formatting (no stray quotes, TXT length split, etc.), checks for the 10-lookup pitfall, and verifies propagation.

4) Re-test & roll forward

• Send a test from the platform and watch the source turn Aligned.
• Keep DMARC at p=none until all major senders are aligned, then move toward quarantine, then reject.

5) MSP-friendly ops

• Triage alignment issues across many tenants with a single queue.
• The agent groups identical fixes (e.g., “Set custom Return-Path for Mail Platform X”) so you can apply them across domains quickly.

Troubleshooting playbook

SPF passes but alignment still fails

• Check the Return-Path in the raw headers. Does it belong to your vendor’s shared domain? If yes, configure a custom Return-Path.

We can’t set a custom Return-Path

• Make DKIM your alignment path. Confirm the visible From: domain and the DKIM d= domain belong to the same organizational domain. If it still fails, work through why DKIM alignment breaks and re-check with the DKIM checker.

We hit the 10-lookup limit

• Consolidate includes, remove unused vendors, prefer the vendor’s consolidated include: where offered. If you must scope, create a subdomain-specific SPF (e.g., spf.mail.example.com) used only by that sender.

Forwarding breaks SPF

• Expected. Ensure DKIM is aligned so DMARC can still pass downstream.

Strict alignment is causing pain

• Move back to relaxed (aspf=r) unless your compliance policy mandates strict. Aligning every subdomain and host is operationally heavy.
