Check DMARC alignment

How to run the check

1. Collect a delivered-message sample

Send a new message through the exact application, ESP, gateway, and recipient path you need to validate. Open the message's raw headers in the receiving system.

Record these values without exposing message content or recipient data:

• The domain in the visible From: address.
• The receiver's Authentication-Results result for spf, dkim, and dmarc.
• The SPF identity shown as smtp.mailfrom, when present.
• The DKIM signing domain shown as header.d, when present.
• The domain named after header.from in the DMARC result, when present.

2. Inspect the public DMARC record

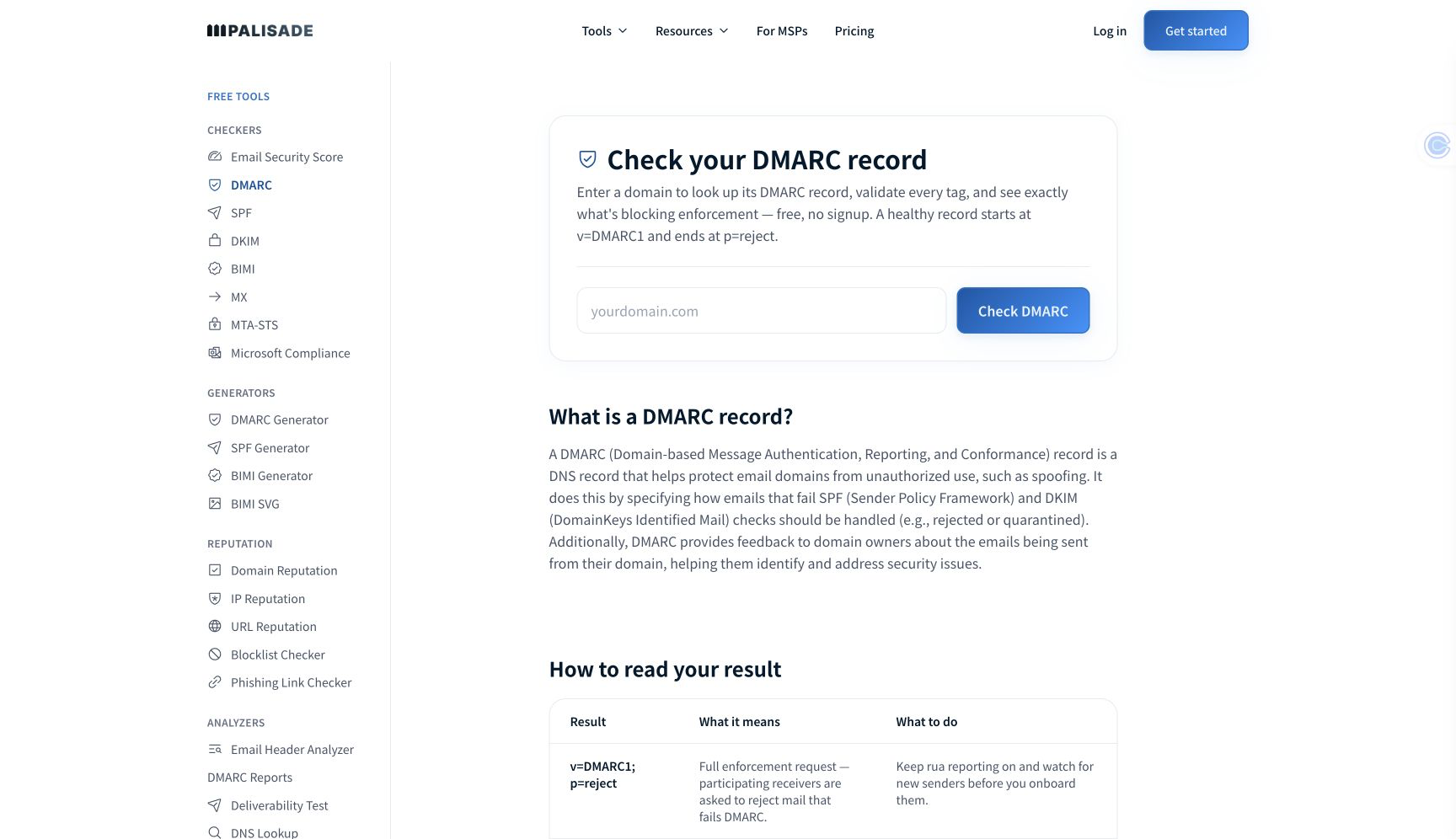

Enter the visible From domain in the Palisade DMARC checker. Review the published p, adkim, and aspf tags. If adkim or aspf is omitted, the DMARC specification defines relaxed alignment as the default.

You can independently query the public record with an example lookup:

dig +short TXT _dmarc.yourdomain.com

A record can have this structural shape:

v=DMARC1; p=none; adkim=r; aspf=r

Use the record generated for your own domain. Do not copy DNS values, reporting addresses, or policy settings from another organization.

This public DNS check establishes the published policy settings. It cannot parse a delivered message or prove that its SPF or DKIM identity aligned.

3. Compare the message identities

Compare the visible From domain with each passing authentication path. RFC 9989 defines DMARC identifier alignment and the relationship between the RFC 5322 From domain, SPF, and DKIM.

For SPF, compare From: with smtp.mailfrom. A passing SPF result only supports DMARC if those domains align under aspf.

For DKIM, compare From: with header.d. A passing DKIM result only supports DMARC if those domains align under adkim.

If the receiver recorded dmarc=pass, identify which aligned path supplied the pass. If it recorded dmarc=fail, check both paths before changing DNS. One path may pass authentication but fail alignment while the other path may be absent, fail, or also be unaligned.

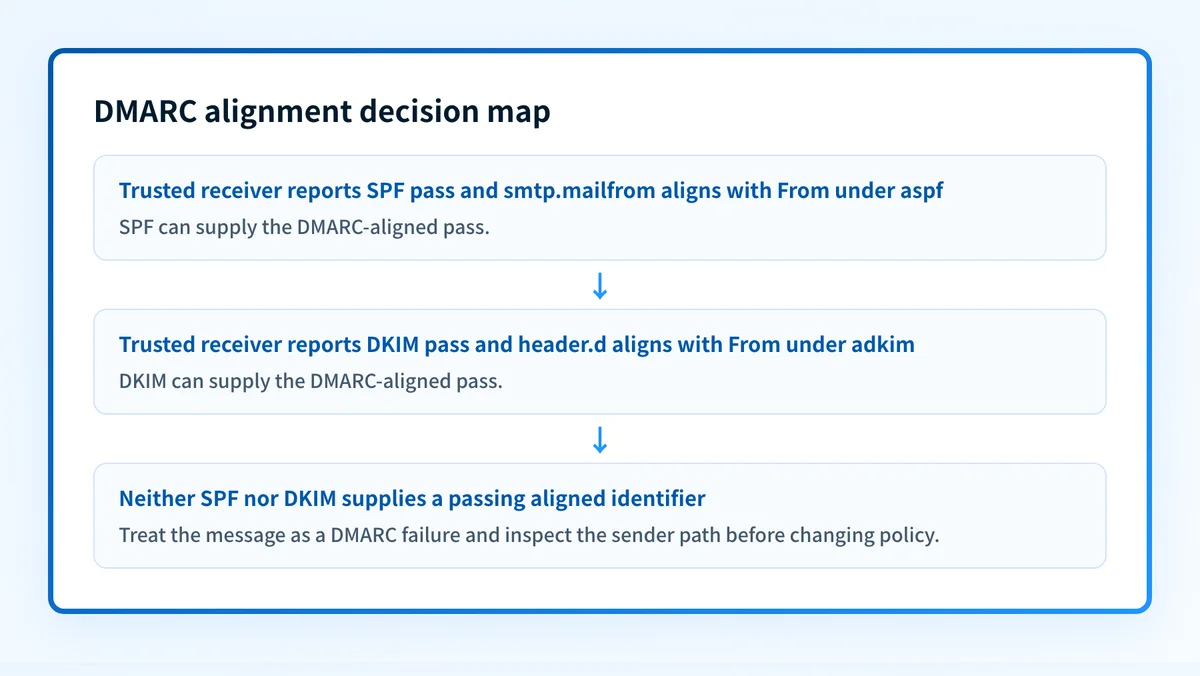

How to interpret the results

SPF passes and aligns

An SPF pass can support DMARC when the smtp.mailfrom domain matches the visible From domain under the domain's aspf mode. Under strict SPF alignment, the domains must match exactly. Under relaxed SPF alignment, they can share the same organizational domain.

For example, From: alerts@yourdomain.com and smtp.mailfrom=bounces.yourdomain.com can align in relaxed mode, but do not align in strict mode. Confirm the receiver's own result before treating this as the path that passed DMARC.

SPF passes but does not align

This result means the receiving system accepted the SPF-authenticated identity, but that identity cannot satisfy the SPF branch of DMARC for the visible From domain. A common next step is to determine whether the sender can use a custom return-path domain that aligns with the domain in From:.

Do not add an unrelated service to the root SPF record solely because its messages fail DMARC. The problem may be the envelope identity rather than authorization. Check whether DKIM provides an aligned pass before changing SPF.

DKIM passes and aligns

A DKIM pass can support DMARC when header.d aligns with the visible From domain under adkim. This is often the relevant path when a sending platform uses its own return-path domain but signs with your domain or an aligned subdomain.

The DKIM signature must be present in the delivered message and the trusted receiver must report the result. A public DKIM record alone does not prove that the application used the matching selector or key.

DKIM passes but does not align

A DKIM signature can verify while its header.d domain does not align with the visible From domain. In that case, the DKIM branch does not support DMARC. Review the sender's authenticated-domain or custom-DKIM configuration and use the domain it generated for that account.

If the sender cannot sign with an aligned domain, determine whether an aligned SPF path is available before changing the visible From domain or the DMARC policy.

Both authenticated paths fail to supply alignment

When neither SPF nor DKIM supplies a passing aligned identifier, the message cannot pass DMARC. The receiving system's dmarc=fail result is the evidence to investigate first. Follow an email authentication failure diagnosis with the same delivered-message path, rather than assuming a public DNS record explains the failure.

A single failed message does not establish that every sender is failing. It may identify one application, configuration, or routing path that needs separate review.

How to act on the result

Start with the evidence that failed:

• If SPF passed but did not align, review the sender's envelope sender or custom return-path configuration. Change only the sending path that produced the message, then send a new message through that same path.
• If DKIM passed but did not align, review the sender's DKIM signing-domain configuration. Use the exact DNS records generated for your account and domain. Do not reuse selectors or CNAME targets from another tenant.
• If SPF or DKIM did not pass, identify whether the sender failed to authenticate, the DNS record is missing, or the message used a different identity than expected.
• If the message has an aligned pass but the public checker shows unexpected adkim or aspf values, resolve the DNS discrepancy before considering a stricter policy.
• If you only need to inspect the policy record, use the DMARC record checking guide. Its DNS workflow cannot establish alignment for a particular delivered message.

• DNS: query the authoritative record and at least one public resolver after a change.
• Sender: confirm the sending service accepted and verified the intended authentication domain.
• Message: inspect a newly delivered message from the same production path.
• DMARC: review aggregate-report evidence after reports accumulate to see whether other sources show the same issue.

How to retest

Repeat the public record lookup after DNS propagation, then send a new message through the same application and route. Inspect the trusted receiver's new Authentication-Results field and compare the same identifiers again.

The expected change depends on the repair. A corrected return-path or signing domain should produce an SPF or DKIM identity that aligns with the visible From domain under the published aspf or adkim setting. If the receiver still reports dmarc=fail, preserve the new header evidence and revisit both authentication paths.

Use the DMARC learning hub for the policy implications after you know which sources pass and align. Do not move from monitoring to enforcement based on one sample message.

Turn recurring sender evidence into reviewable work

One delivered message can identify an alignment path, but it cannot inventory every legitimate source that sends as the domain or show how aggregate-report evidence changes over time. Palisade's documented DMARC Agent workflow analyzes DMARC aggregate-report data, identifies sources and authentication or alignment issues, and creates prioritized remediation tickets for human review.
