MxToolbox email deliverability tool: read the report

How the options were evaluated

The diagnostic options below were assessed against public first-party documentation checked on 2026-07-28. The criteria are:

• Input fit: whether the check needs a submitted message, a public domain, an MX hostname, an IP address, or an SMTP endpoint.
• Evidence scope: the specific fact the result can establish.
• Time model: whether the result is a point-in-time observation or evidence from a submitted message.
• Next action: the narrowest investigation the result supports.
• Boundary: what the result does not prove or control.

MxToolbox Email Deliverability tool

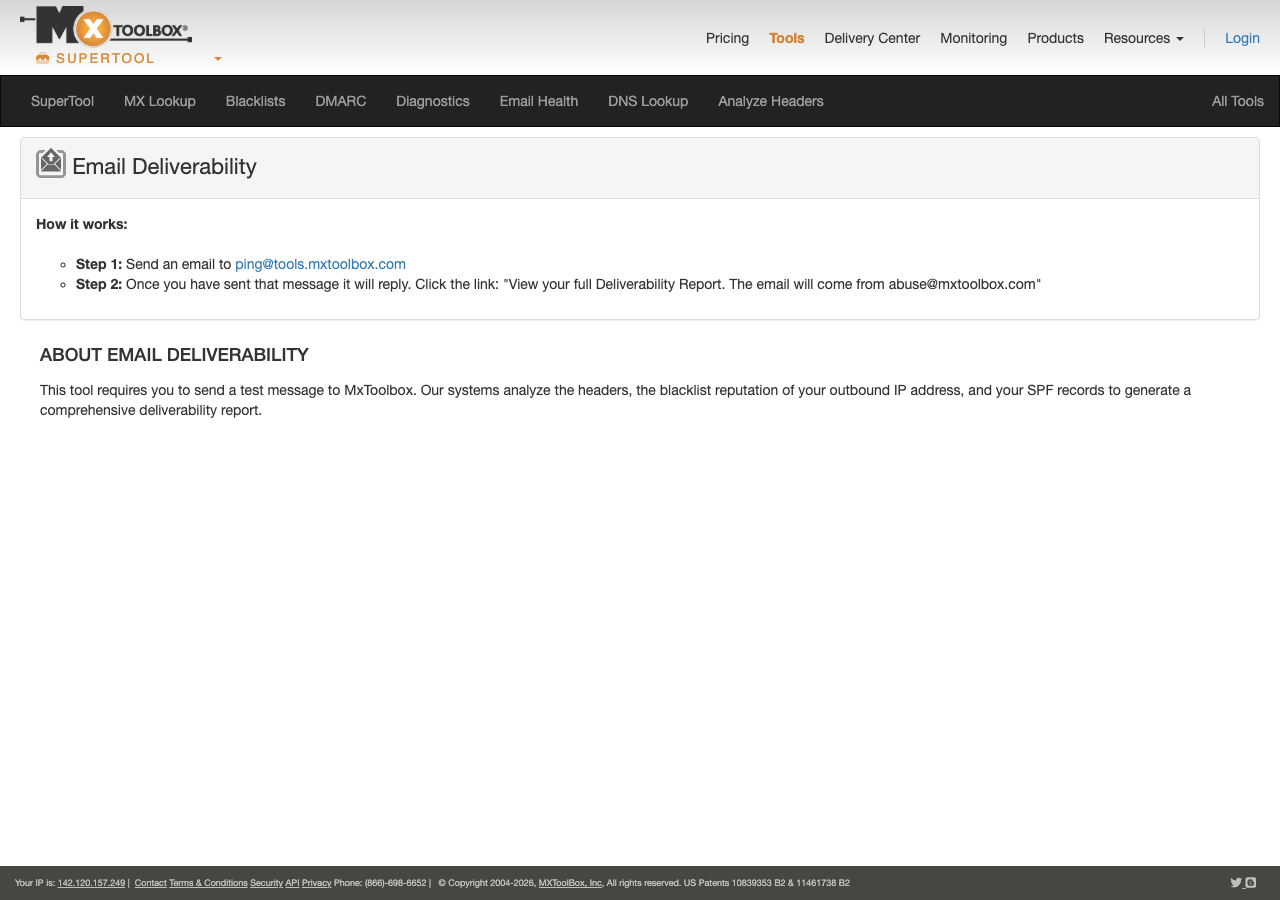

MxToolbox documents an Email Deliverability workflow that accepts a test message. Its Email Deliverability page instructs the sender to email ping@tools.mxtoolbox.com, then retrieve the report through the reply link or by entering the sender email address in the page's search control.

1. Send a representative test message

Send a new message through the same application, provider configuration, visible From domain, and authentication setup that you need to investigate. Do not substitute a message from a different system when the question concerns the production path.

Keep the sent copy. It gives you the message subject, sender identity, and sending context needed to confirm that the returned report belongs to the intended test.

2. Retrieve the report

Open the reply from MxToolbox and use the report link. If you need to retrieve an earlier result, use the email search method documented on the MxToolbox Email Deliverability page.

Confirm that the report corresponds to the message you sent before acting on it. An older report can describe an earlier configuration, DNS state, or sending path.

3. Preserve the evidence that drives the next action

Record the test context before making changes. This prevents a later record update or sender change from being credited to the wrong test.

Test date and time:
Sending application:
Visible From domain:
Report sender address and subject:
Reported failed, delayed, or warning fields:
Next evidence source:
Same-path retest date:

• Best fit: Investigating one message sent through a known path.
• Relevant evidence: MxToolbox's Email Delivery Tools documentation describes Header Analyzed, Delivery Information, Relay Information, SPF/DKIM Information, Headers Found, and Received Header.
• Tradeoff: The report does not establish a receiver-wide inbox-placement result, future delivery behavior, or the state of an unobserved sending source.

Public DNS and MX diagnostics

A public DNS or MX diagnostic is the better fit when the remaining question is "what record can a public resolver see now?" It is not a replacement for the MxToolbox submitted-message report.

Use a public DNS result after the report points to a record question, such as a DMARC publication issue. The focused Palisade DMARC checker can inspect the public DMARC record for a domain. A public MX check can inspect the currently published mail-routing records.

Do not replace an SPF record, publish a DKIM record, or change a DMARC policy based only on a red status. First identify the sending application, the intended identity, and the authoritative DNS record that controls the path.

• Best fit: Confirming public DNS or MX publication after a report narrows the question.
• Relevant evidence: A public lookup can establish the answer returned for the queried domain or hostname at that time.
• Tradeoff: A public record does not prove the sending application used it, that a message was signed, or that a receiver accepted the message.

Blocklist and SMTP diagnostics

A blocklist lookup and an SMTP diagnostic answer different questions from the MxToolbox report.

A blocklist lookup is appropriate when the investigation has identified a sending IP address or domain and the next question concerns a named reputation data source. Palisade can run the domain and its mail server IPs through public blocklists in one pass. Record the exact input, provider, and lookup time. A clean result does not establish that every receiver considers the sender reputable, because mailbox providers can apply private reputation and filtering signals.

SMTP diagnostics are appropriate when the symptom is a connection, TLS, greeting, relay, or response-code problem. Those failures require observed server behavior, relevant mail-server logs, or a test against the affected endpoint. A public DNS record does not reproduce an SMTP transaction.

• Best fit: Investigating a named source reputation result or a mail-server interaction.
• Relevant evidence: A blocklist result applies to the named provider and exact queried input. SMTP evidence applies to the observed connection and response.
• Tradeoff: Neither result proves inbox placement, message authentication on every future message, or a receiver's private filtering decision.

Palisade for a separate public DMARC question

Palisade fits this workflow only when the MxToolbox report leaves a specific public DMARC publication question open. The Palisade DMARC checker gives a separate public record check that can complement the message-specific report.

• Best fit: Inspecting the currently published DMARC record after report evidence points to DMARC publication.
• Relevant evidence: The public DMARC record returned for the queried domain.
• Tradeoff: The checker cannot reproduce MxToolbox's submitted-message report, alter DNS, control a receiver, or guarantee inbox placement.

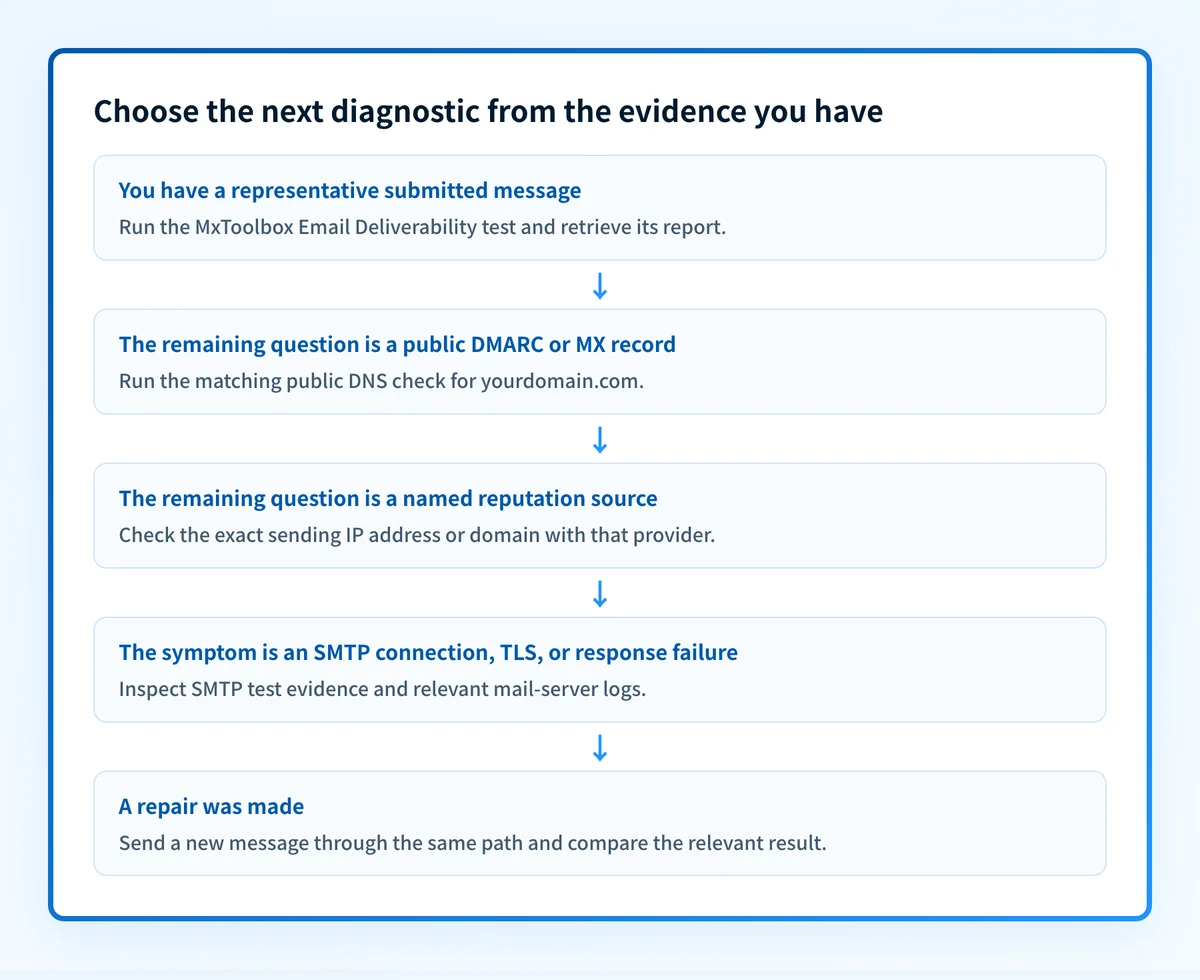

How to choose

Choose MxToolbox first when you need a report about an actual submitted test message. Choose a public DNS or MX lookup when the remaining question is about a currently published record. Choose a blocklist lookup when the question names a particular reputation source and IP address or domain. Choose SMTP evidence when the failure concerns a server connection or response.

option: MxToolbox Email Deliverability tool
checked_on: 2026-07-28
best_fit: "A representative message sent through the path under investigation"
verified_evidence: "Header, delivery, relay, SPF, DKIM, and received-message report sections documented by MxToolbox"
open_question: "How a specific receiving mailbox provider will place future messages"
option: Public DMARC or MX lookup
checked_on: 2026-08-13
best_fit: "A question about a currently resolvable public record"
verified_evidence: "The record returned for the exact queried domain or hostname"
open_question: "Whether the production sender uses the record and whether a receiver accepts the message"
option: Blocklist or SMTP diagnostic
checked_on: 2026-08-13
best_fit: "A named reputation source or observed mail-server behavior"
verified_evidence: "The exact provider result or tested SMTP interaction"
open_question: "Inbox placement and receiver-private filtering decisions"

Use the report in this evidence order:

• Delivery Information: investigate an authentication result through the application configuration and the relevant public record.
• Relay Information: inspect the sending provider's logs or receiving system evidence before changing authentication policy.
• SPF and DKIM Information: identify the sender identity and the exact DNS record before proposing any DNS change.
• Headers Found and Received Header: confirm that the report represents the path you intended to test.

Retest the same message path

After a supported repair, send a fresh message through the same application and visible From domain to ping@tools.mxtoolbox.com. Retrieve the new report, confirm that it describes the new message, and compare the field that prompted the repair.

When DNS was changed, confirm the intended value with authoritative DNS and at least one public resolver before interpreting the retest. Then check the sending application's own verification state and inspect a real delivered message from that same production path. Once DMARC aggregate reports have accumulated, use them to confirm which sources are actually sending and whether authentication or alignment issues remain.

Check a remaining public DMARC question

If the report leaves a DMARC publication question unresolved, check the public DMARC record with Palisade. This is useful after the report has narrowed the issue to public DNS evidence. It does not reproduce the submitted-message report, repair the sender configuration, monitor later changes, or guarantee inbox placement.
