SPF record format: version, mechanisms, and qualifiers

What are the requirements?

The record starts with an SPF version and uses one TXT record

RFC 7208 defines SPF version 1 records as DNS TXT records beginning with v=spf1. The rest of the record contains terms separated by spaces. A domain must not publish multiple SPF records that claim to be SPF version 1 records. A receiver that finds multiple records returns Permerror.

v=spf1 ip4:192.0.2.0/24 include:spf.sender.example ~all

This is illustrative only. Replace the example IP range and included domain with values generated or documented for your own authorized senders. Do not copy another organization's SPF record.

This article focuses on the grammar and evaluation behavior of the record itself.

Mechanisms test the connecting sender

An SPF mechanism tests the SMTP client IP address or evaluates another SPF policy. RFC 7208 defines these mechanisms:

• all matches every sender. It normally appears at the end because terms after all cannot be reached.
• include: evaluates the named domain's SPF record.
• a tests addresses returned for a domain's A or AAAA records.
• mx tests addresses associated with a domain's MX hosts. See what the SPF MX mechanism does for its narrower behavior.
• ip4: and ip6: test a literal IPv4 or IPv6 address range.
• exists: performs a DNS lookup whose result determines whether the mechanism matches.
• ptr uses reverse-DNS processing. RFC 7208 says it is not recommended and publishers should not use it.

Qualifiers set the result of a match

A qualifier is one character immediately before a mechanism. If no qualifier appears, the default is +.

+ip4:192.0.2.10  -ip4:198.51.100.10  ~all  ?all

This is illustrative only. These addresses are documentation ranges, not sending infrastructure.

RFC 7208 defines four qualifiers:

• + produces Pass when the mechanism matches.
• - produces Fail when the mechanism matches.
• ~ produces Softfail when the mechanism matches.
• ? produces Neutral when the mechanism matches.

The all mechanism is often used as the final term because it always matches. The SPF all mechanism guide explains why -all, ~all, and ?all communicate different policy results.

Include and redirect have different jobs

include: is a mechanism inside the current record. The included domain is evaluated using the original SMTP client IP address. If that evaluation returns Pass, the include mechanism matches and its qualifier controls the result. If the included policy returns Fail, Softfail, or Neutral, include does not match and evaluation continues. Temperror and Permerror are returned as errors.

redirect= is a modifier, not a mechanism. It is used only when no mechanism matched. It delegates the final evaluation to the named domain's SPF record. A record cannot contain more than one redirect modifier, and a redirect is ignored when a mechanism already matched.

v=spf1 include:spf.sender.example ~all
v=spf1 ip4:192.0.2.10 redirect=spf.policy.example

These examples are illustrative only. An include lets the current record continue evaluating after a non-Pass result from the included policy. A redirect hands off only after the current record has no match. Do not replace one with the other without tracing the expected result for each authorized sender.

The exp modifier is also defined by RFC 7208. It supplies an explanation string for an SPF Fail result. It does not authorize a sender and it does not change the result.

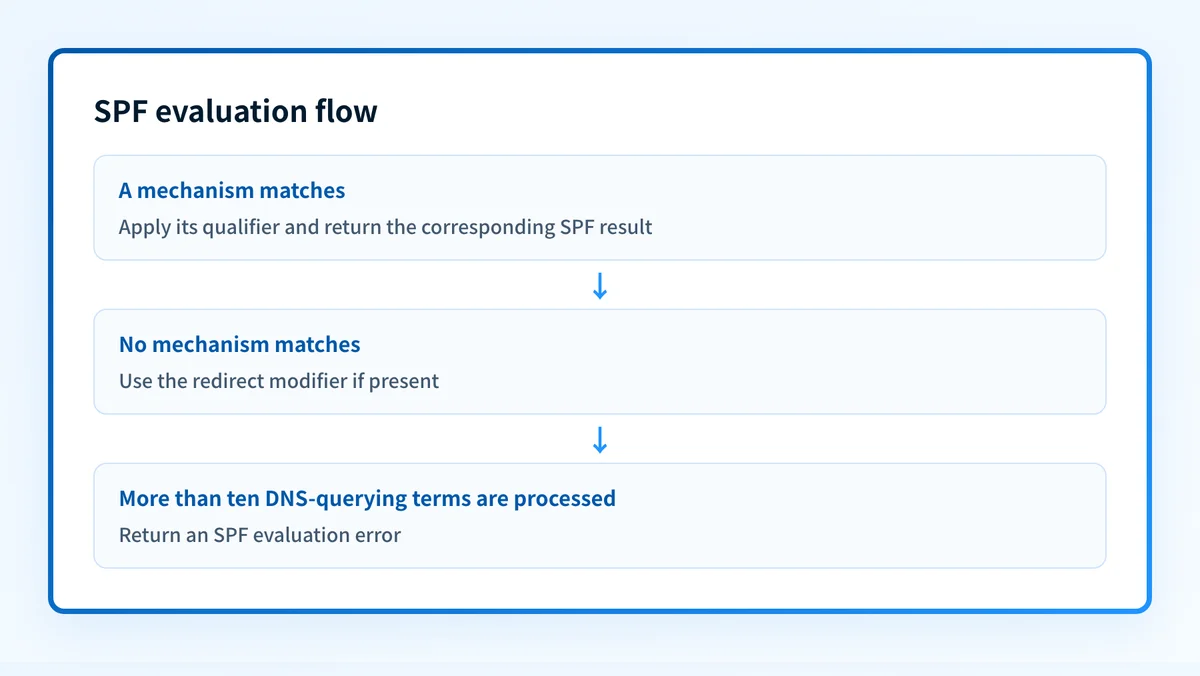

How a receiver evaluates the format

Consider this illustrative record:

v=spf1 ip4:192.0.2.0/24 include:spf.sender.example ~all

The receiver first recognizes v=spf1 as the version. It then tests whether the connecting IP falls within 192.0.2.0/24. If that does not match, it evaluates the included policy. If neither authorization matches, the final ~all produces SPF SoftFail. Evaluation stops as soon as a mechanism matches.

The address range and included domain are examples, not production values. Use the mechanism supplied for each approved sender. If you find two complete SPF policies at one owner name, follow the multiple SPF records repair guide instead of treating them as one long record.

DNS-querying terms have a ten-term limit

RFC 7208 requires SPF evaluators to limit processing to ten DNS-querying terms during an SPF check. The applicable mechanisms are include, a, mx, ptr, and exists, plus the redirect modifier. Each time one of these terms causes DNS queries, it counts toward the evaluation budget.

Literal ip4, ip6, and all terms do not perform DNS lookups. However, an apparently short record can still exceed the limit when an include expands into more DNS-querying terms.

Treat the ten-query limit as an evaluation limit, not a count of visible include tokens. Adding a sender's include can break SPF for every source that reaches that part of the record.

When this does not apply

Do not merge SPF examples into the visible From domain merely because a service sends messages that display that domain. SPF evaluates the SMTP MAIL FROM or HELO identity. If the service uses its own envelope domain, the SPF policy at your visible From domain may not participate in that message's SPF result at all.

Keep policies separate when approved senders use different envelope subdomains. A policy for bounce.example.com belongs at that identity; it does not have to be folded into the record at example.com. Confirm the actual domain shown as smtp.mailfrom or smtp.helo before deciding which DNS owner needs a record.

An SPF sample cannot replace sender inventory or delivered-message validation. It does not tell you whether a platform signs with aligned DKIM, whether DMARC passes, or whether a receiver will accept the message. If the proposed include would take an evaluation path over ten DNS-querying terms, adding it to the combined record is not a safe repair. Trace the path and choose a supported authorization design before publishing.

How do I implement the requirement?

1. Identify the SMTP identities your sources use

Inventory each legitimate sending service and determine its actual MAIL FROM domain and HELO identity. Do not infer the SPF identity from the visible From address.

If an ESP sends with a provider-owned MAIL FROM domain, its SPF result may apply to that provider domain rather than yours. Check the service's documented sending-domain configuration before adding an SPF term.

2. Publish one v=spf1 TXT record at the right domain

Publish one SPF version 1 TXT record at each domain that needs a policy. Confirm the record exists at the precise MAIL FROM or HELO domain used by the sender.

Keep the record as one logical SPF policy even if DNS tooling displays long TXT data in multiple quoted strings. Multiple strings within one TXT record are permitted. Multiple SPF version 1 records are not.

3. Put specific authorization before the final policy

Place literal IP ranges and service-provided include terms before all. Use only mechanisms that match a known sending path.

Start with terms that authorize real sources. Then select the final all qualifier that reflects the policy you can support. -all makes a definitive authorization statement, which suits a domain that sends no mail; a domain that does send should end in ~all. SPF hard fail versus softfail covers that choice.

4. Trace include and redirect paths

Follow every include path and count DNS-querying terms across the possible evaluation path. Check the service's current documentation before changing an include value.

Use redirect only when the intent is to use another domain's SPF policy as the fallback after no local mechanism matches. It is not a general replacement for an include.

5. Recheck changes before publishing a restrictive policy

Compare the proposed record with the sending sources that use the domain. Send test messages through each production path after DNS propagation.

A DNS syntax check is useful, but it cannot reveal a sender that was omitted from the inventory or prove how a specific receiver will apply its local policy.

How do I validate compliance?

First, inspect authoritative DNS and at least one public resolver for one SPF TXT record that begins with v=spf1. Confirm that it is published at the exact SMTP identity, not only at the organizational domain.

Next, trace every applicable evaluation path and count DNS-querying terms. The Palisade SPF checker can inspect a published SPF record and help identify syntax and lookup-budget issues. A public lookup cannot prove the production sending path, continuous DNS state, a receiver's private decision, or future message placement.

Then send a real message from each authorized production source and inspect its delivered headers. RFC 8601 defines how a receiver can record SPF results in Authentication-Results, including smtp.mailfrom and smtp.helo properties. Confirm that the property identifies the expected SMTP domain and that the evaluated result matches the intended sender.

Finally, review DMARC aggregate reports after data accumulates. SPF Pass alone does not establish DMARC alignment. Aggregate-report evidence can show whether the SPF-authenticated domain aligns with the visible From domain for real traffic.

Check the SPF record before you change its policy

Use the SPF checker to inspect the record published for the domain that appears in the SMTP MAIL FROM or HELO identity. Compare its syntax and lookup path with a delivered message's Authentication-Results header before adding an include or changing the final all policy.
